Schneider Easy9 MCBs in Malaysia: reading the code and ordering one

If you’re replacing a Schneider Easy9 MCB and need the same part again, the order code is what you match. Easy9 is Schneider Electric’s compact DIN-rail miniature circuit breaker: the device that cuts a circuit on overload or a short. It comes in three breaking-capacity versions with different order codes, so the code is where you start.

Reading the reference

Take EZ9F56132, a 1-pole 32 A part:

  • EZ9F56 is the breaking-capacity line, here 6 kA
  • 1 is the pole count: 1 is 1P, 2 is 2P, 3 is 3P, 4 is 4P
  • 32 is the amperage in amps, written as two digits

So EZ9F56106 is 1-pole 6 A, EZ9F56216 is 2-pole 16 A, and EZ9F56332 is 3-pole 32 A. The amperage is always two digits, which is why 6 A comes out as 06 and not 6. A 2-pole 63 A part is EZ9F56263.

The other two lines follow the same pattern with their own prefix: EZ9F34 for 4.5 kA and EZ9F51 for 10 kA. So EZ9F34116 is a 4.5 kA 1-pole 16 A breaker and EZ9F51116 the 10 kA one. We checked this reading against all 75 codes on Schneider Malaysia’s list; it’s our reading of the codes, not Schneider’s own decoding.

The pole digit is easy to skim past. EZ9F56232 and EZ9F56132 differ by a single character, yet one is a 2-pole part and the other is 1-pole. Read the whole code, not just the last four digits.

What Schneider Malaysia lists

As of 6 October 2026, Schneider Malaysia’s product list for the Easy9 MCB range has 75 references, all C curve:

LinePrefix1P2P3P4P
4.5 kA (4500 A)EZ9F346–63 A (9 ratings)6–63 A (9)6–63 A (9)63 A only
6 kA (6000 A)EZ9F566–63 A (9)6–63 A (9)6–63 A (9)none listed
10 kA (10000 A)EZ9F516–63 A, no 25 or 50 A (7)6–63 A, no 25 or 50 A (7)10–63 A, no 25 or 50 A (6)none listed

The nine ratings are 6, 10, 16, 20, 25, 32, 40, 50 and 63 A. That gives 28 references in the 4.5 kA line, 27 in the 6 kA line and 20 in the 10 kA line. Schneider’s range page opens on the 4.5 kA line, so the 6 kA and 10 kA parts only show up once you change its filter.

What isn’t on the list matters too. There’s no B or D curve and no 1P+N Easy9 MCB on the list, and the only 4-pole part on it is the 4.5 kA 63 A EZ9F34463. The 10 kA line has no 25 A or 50 A rating, and no 3-pole 6 A. If a board design needs one of these, Schneider’s Acti9 iC60 list has B, C and D curves, 1P+N and 4P versions.

All 75 references are in the table below, grouped by line.

Schneider Easy9 MCBs

Compact DIN-rail miniature circuit breakers from Schneider Electric's Easy9 series for residential and small commercial boards. As of 6 October 2026, Schneider Malaysia's Easy9 MCB list has 75 references in three breaking-capacity sub-lines — 4500 A (EZ9F34, 28 refs), 6000 A (EZ9F56, 27) and 10000 A (EZ9F51, 20) — all C curve, in 1P, 2P and 3P plus one 4P part. Every listed code reads sub-line prefix + pole digit + two-digit amperage. All 75 are shown below.

Family
Easy9
Function
MCB — overload and short-circuit protection
Schneider Malaysia list
75 references in three sub-lines: 4500 A (28), 6000 A (27) and 10000 A (20); the range page opens on the 4500 A sub-line only
Breaking capacity
4500 A, 6000 A or 10000 A under IEC 60898-1, set by the sub-line and shown in each code's prefix. EZ9F56132 is 6000 A Icn at 230 V AC (datasheet) with 6 kA service breaking capacity. The 4500 A pages we checked (EZ9F34106, EZ9F34463) also state 25 kA at 24–48 V DC under IEC 60947-2. Schneider's body text for EZ9F56225, EZ9F56250 and EZ9F56432 says 10000 A at 220 V although their titles and sub-line say 6000 A; go by the code and title.
Curve
C curve only on the Malaysian list (no B or D). EZ9F26106 (1P 6 A B curve) has a Schneider Malaysia page marked 'Discontinued on: 1 Jul 2019' and 'has not been replaced'; it is not on the list.
Poles and ratings, 4500 A (EZ9F34)
1P, 2P and 3P at 6, 10, 16, 20, 25, 32, 40, 50 and 63 A; 4P at 63 A only (EZ9F34463)
Poles and ratings, 6000 A (EZ9F56)
1P, 2P and 3P at 6, 10, 16, 20, 25, 32, 40, 50 and 63 A; no 4P on the list
Poles and ratings, 10000 A (EZ9F51)
1P and 2P at 6, 10, 16, 20, 32, 40 and 63 A; 3P at 10–63 A (no 6 A); no 25 A, 50 A or 4P
1P+N
None on the Malaysian list; 2P parts protect both poles
Width
18 mm (two 9 mm pitches) per pole on the pages checked: 1P 18 mm, 2P 36 mm, 3P 54 mm, 4P 72 mm
Code pattern
EZ9F34 / EZ9F56 / EZ9F51 + pole digit (1–4) + two-digit amperage, e.g. EZ9F56132 = 6000 A, 1P, 32 A; checked against all 75 listed codes
Malaysian product pages not on the list
EZ9F56432 and EZ9F56463 (4P 32 A and 63 A, 6000 A), EZ9F51306 (3P 6 A, 10000 A; also on Plus Power's 10 kA page and in Schneider's 2021 price list) and the discontinued EZ9F26106
Seller-advertised subsets
Plus Power 6 kA page: 23 codes (1P 6–63 A; 2P 6–40 A without 25 A; 3P 6–63 A without 25 A). Plus Power 4.5 kA page: EZ9F34106, 34120, 34206, 34220. Plus Power 10 kA page: 11 codes, including EZ9F51306, which is not on Schneider Malaysia's list. Chin Chun Hardware: 18 codes, all 6 kA (1P and 2P 6–63 A, 3P 20–63 A, without 25 or 50 A)
2021 list price by sub-line (before trade discounts)
1P C16: RM22.20 (4500 A), RM23.20 (6000 A), RM45.10 (10000 A); 2P C32: RM69.90, RM82.20, RM102.70; 3P C32: RM105.90, RM128.20, RM159.00

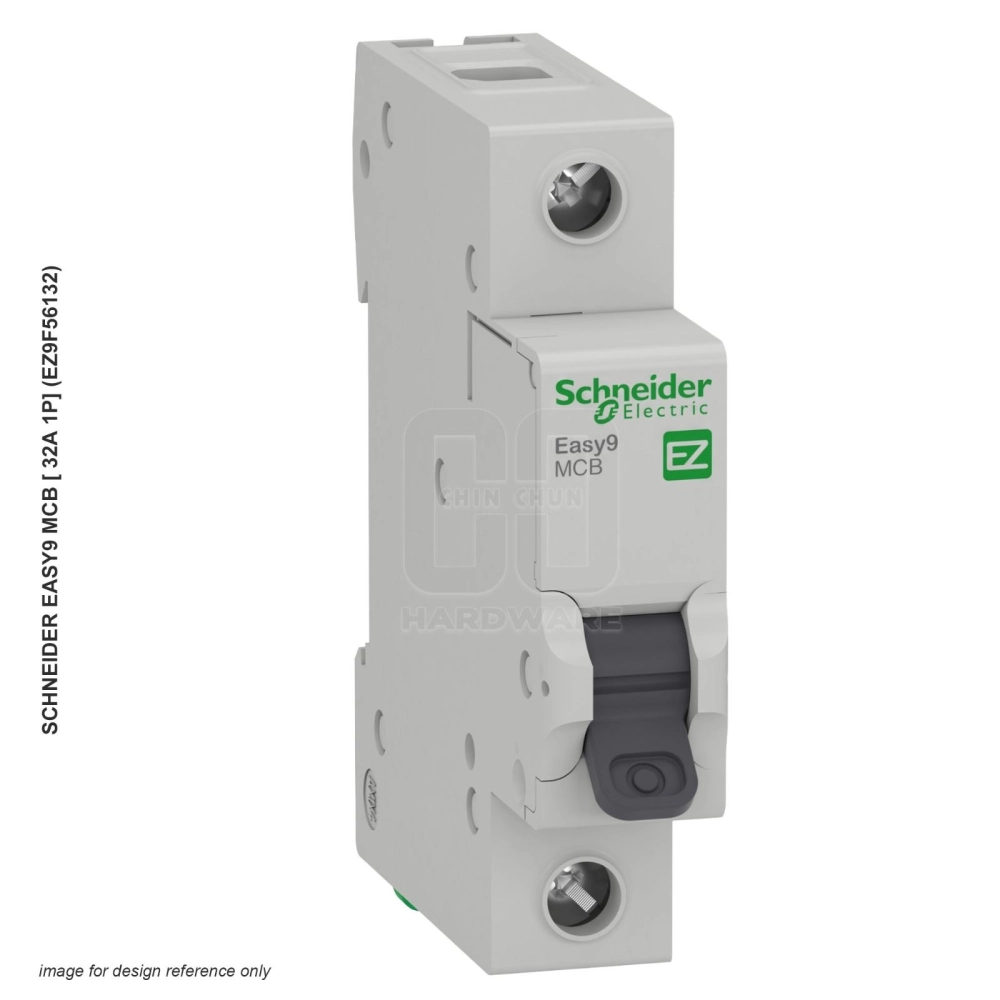

Rendered product image of a grey single-pole Schneider Easy9 MCB with a dark toggle, captioned Easy9 MCB 32A 1P EZ9F56132
Chin Chun Hardware's listing image for the Schneider Easy9 MCB 1P 32A (EZ9F56132). The device shows the Schneider Electric and Easy9 MCB markings; the rating is carried in the side caption, not legibly printed on the device in this render. Source
Selected variants
ModelConfiguration
EZ9F34106Easy9 MCB, 1P, 6 A, C curve, 4.5 kA
EZ9F34110Easy9 MCB, 1P, 10 A, C curve, 4.5 kA
EZ9F34116Easy9 MCB, 1P, 16 A, C curve, 4.5 kA
EZ9F34120Easy9 MCB, 1P, 20 A, C curve, 4.5 kA
EZ9F34125Easy9 MCB, 1P, 25 A, C curve, 4.5 kA
EZ9F34132Easy9 MCB, 1P, 32 A, C curve, 4.5 kA
EZ9F34140Easy9 MCB, 1P, 40 A, C curve, 4.5 kA
EZ9F34150Easy9 MCB, 1P, 50 A, C curve, 4.5 kA
EZ9F34163Easy9 MCB, 1P, 63 A, C curve, 4.5 kA
EZ9F34206Easy9 MCB, 2P, 6 A, C curve, 4.5 kA
EZ9F34210Easy9 MCB, 2P, 10 A, C curve, 4.5 kA
EZ9F34216Easy9 MCB, 2P, 16 A, C curve, 4.5 kA
EZ9F34220Easy9 MCB, 2P, 20 A, C curve, 4.5 kA
EZ9F34225Easy9 MCB, 2P, 25 A, C curve, 4.5 kA
EZ9F34232Easy9 MCB, 2P, 32 A, C curve, 4.5 kA
EZ9F34240Easy9 MCB, 2P, 40 A, C curve, 4.5 kA
EZ9F34250Easy9 MCB, 2P, 50 A, C curve, 4.5 kA
EZ9F34263Easy9 MCB, 2P, 63 A, C curve, 4.5 kA
EZ9F34306Easy9 MCB, 3P, 6 A, C curve, 4.5 kA
EZ9F34310Easy9 MCB, 3P, 10 A, C curve, 4.5 kA
EZ9F34316Easy9 MCB, 3P, 16 A, C curve, 4.5 kA
EZ9F34320Easy9 MCB, 3P, 20 A, C curve, 4.5 kA
EZ9F34325Easy9 MCB, 3P, 25 A, C curve, 4.5 kA
EZ9F34332Easy9 MCB, 3P, 32 A, C curve, 4.5 kA
EZ9F34340Easy9 MCB, 3P, 40 A, C curve, 4.5 kA
EZ9F34350Easy9 MCB, 3P, 50 A, C curve, 4.5 kA
EZ9F34363Easy9 MCB, 3P, 63 A, C curve, 4.5 kA
EZ9F34463Easy9 MCB, 4P, 63 A, C curve, 4.5 kA
EZ9F56106Easy9 MCB, 1P, 6 A, C curve, 6 kA
EZ9F56110Easy9 MCB, 1P, 10 A, C curve, 6 kA
EZ9F56116Easy9 MCB, 1P, 16 A, C curve, 6 kA
EZ9F56120Easy9 MCB, 1P, 20 A, C curve, 6 kA
EZ9F56125Easy9 MCB, 1P, 25 A, C curve, 6 kA
EZ9F56132Easy9 MCB, 1P, 32 A, C curve, 6000 A at 230 V
EZ9F56140Easy9 MCB, 1P, 40 A, C curve, 6 kA
EZ9F56150Easy9 MCB, 1P, 50 A, C curve, 6 kA
EZ9F56163Easy9 MCB, 1P, 63 A, C curve, 6 kA
EZ9F56206Easy9 MCB, 2P, 6 A, C curve, 6 kA
EZ9F56210Easy9 MCB, 2P, 10 A, C curve, 6 kA
EZ9F56216Easy9 MCB, 2P, 16 A, C curve, 6000 A at 230 V
EZ9F56220Easy9 MCB, 2P, 20 A, C curve, 6 kA
EZ9F56225Easy9 MCB, 2P, 25 A, C curve, 6 kA
EZ9F56232Easy9 MCB, 2P, 32 A, C curve, 6000 A at 230 V
EZ9F56240Easy9 MCB, 2P, 40 A, C curve, 6 kA
EZ9F56250Easy9 MCB, 2P, 50 A, C curve, 6 kA
EZ9F56263Easy9 MCB, 2P, 63 A, C curve, 6 kA
EZ9F56306Easy9 MCB, 3P, 6 A, C curve, 6 kA
EZ9F56310Easy9 MCB, 3P, 10 A, C curve, 6 kA
EZ9F56316Easy9 MCB, 3P, 16 A, C curve, 6 kA
EZ9F56320Easy9 MCB, 3P, 20 A, C curve, 6 kA
EZ9F56325Easy9 MCB, 3P, 25 A, C curve, 6 kA
EZ9F56332Easy9 MCB, 3P, 32 A, C curve, 6000 A at 400 V
EZ9F56340Easy9 MCB, 3P, 40 A, C curve, 6 kA
EZ9F56350Easy9 MCB, 3P, 50 A, C curve, 6 kA
EZ9F56363Easy9 MCB, 3P, 63 A, C curve, 6 kA
EZ9F51106Easy9 MCB, 1P, 6 A, C curve, 10 kA
EZ9F51110Easy9 MCB, 1P, 10 A, C curve, 10 kA
EZ9F51116Easy9 MCB, 1P, 16 A, C curve, 10 kA
EZ9F51120Easy9 MCB, 1P, 20 A, C curve, 10 kA
EZ9F51132Easy9 MCB, 1P, 32 A, C curve, 10 kA
EZ9F51140Easy9 MCB, 1P, 40 A, C curve, 10 kA
EZ9F51163Easy9 MCB, 1P, 63 A, C curve, 10 kA
EZ9F51206Easy9 MCB, 2P, 6 A, C curve, 10 kA
EZ9F51210Easy9 MCB, 2P, 10 A, C curve, 10 kA
EZ9F51216Easy9 MCB, 2P, 16 A, C curve, 10 kA
EZ9F51220Easy9 MCB, 2P, 20 A, C curve, 10 kA
EZ9F51232Easy9 MCB, 2P, 32 A, C curve, 10 kA
EZ9F51240Easy9 MCB, 2P, 40 A, C curve, 10 kA
EZ9F51263Easy9 MCB, 2P, 63 A, C curve, 10 kA
EZ9F51310Easy9 MCB, 3P, 10 A, C curve, 10 kA
EZ9F51316Easy9 MCB, 3P, 16 A, C curve, 10 kA
EZ9F51320Easy9 MCB, 3P, 20 A, C curve, 10 kA
EZ9F51332Easy9 MCB, 3P, 32 A, C curve, 10 kA
EZ9F51340Easy9 MCB, 3P, 40 A, C curve, 10 kA
EZ9F51363Easy9 MCB, 3P, 63 A, C curve, 10 kA
Sources

Which breaking capacity

Breaking capacity is the largest fault current the breaker can interrupt safely. Schneider rates each Easy9 line under IEC 60898-1, the household MCB standard: 4500 A, 6000 A or 10000 A. The rating has to be at least the fault current available where the breaker is installed, so your electrician or the board designer should set it. When you replace a breaker, match the existing line unless they tell you otherwise.

Check which rating a figure refers to. The two 4.5 kA pages we checked also state 25 kA at 24–48 V DC under IEC 60947-2, a separate DC rating, not a higher AC one. And on a few 6 kA pages (EZ9F56225, EZ9F56250) Schneider’s description text says 10000 A while the title and code say 6000 A. Go by the code.

The higher lines cost more. Schneider Malaysia’s August 2021 price list, before trade discounts, gives:

Same rating4.5 kA6 kA10 kA
1P C16EZ9F34116, RM22.20EZ9F56116, RM23.20EZ9F51116, RM45.10
2P C32EZ9F34232, RM69.90EZ9F56232, RM82.20EZ9F51232, RM102.70
3P C32EZ9F34332, RM105.90EZ9F56332, RM128.20EZ9F51332, RM159.00

These are 2021 list prices before trade discounts, not today’s shop prices; ask for a current quote.

What C curve means

Every Easy9 MCB on the Malaysian list is C curve. The letter describes only the instantaneous magnetic trip band. On the 1-pole 32 A datasheet we read, Schneider puts that band at 5 to 10 times the rated current, so a large fault current in that range trips the breaker straight away. The thermal side handles sustained overload. The letter names a trip threshold, not a general speed ranking, so it’s not a “C is slower than B” question.

On that same 1-pole 32 A part (EZ9F56132), Schneider lists 6000 A breaking capacity at 230 V, 6 kA service breaking capacity, a 500 V insulation rating and IEC 60898-1 as the standard. Those figures belong to that reference; other ratings carry their own. On the product pages we checked, each pole is 18 mm wide (two 9 mm pitches): 18 mm for 1P, 36 mm for 2P, 54 mm for 3P and 72 mm for 4P.

Codes you may see that aren’t on the list

Schneider Malaysia has product pages for a few Easy9 MCB codes that aren’t on the range’s current list:

  • EZ9F26106, a 1-pole 6 A B curve breaker, marked discontinued on 1 July 2019; Schneider’s page says it “has not been replaced”.
  • EZ9F56432 and EZ9F56463, 4-pole 32 A and 63 A at 6 kA.
  • EZ9F51306, a 3-pole 6 A at 10 kA. It was on Schneider’s 2021 price list, and Plus Power’s 10 kA page still lists it.

We haven’t confirmed whether the last three are still supplied. If you hold one of these breakers, ask the seller for that exact code; if it isn’t available, the electrician can pick the nearest listed equivalent.

Which combinations sellers advertise

Seller pages list a subset of Schneider’s list, and they differ. For the 6 kA line:

PolesPlus Power SolutionChin Chun Hardware
1P6–63 A (all 9 ratings)6–63 A, no 25 or 50 A
2P6–40 A, no 25 A6–63 A, no 25 or 50 A
3P6–63 A, no 25 A20–63 A, no 25 or 50 A

Plus Power’s 2-pole options stop at 40 A while Chin Chun lists the 63 A part, and neither page lists the 2-pole or 3-pole 25 A codes that are on Schneider’s list. A code missing from one page may still be orderable, so ask.

Where to buy one

Two Selangor sellers advertise the family with exact references and work on enquiry rather than checkout, which suits a single-part order.

Chin Chun Hardware in Selangor lists 18 Easy9 MCBs by reference, all from the 6 kA line, and each item is a WhatsApp enquiry. The page is useful as a reference list: if your code appears there, you have the number to ask for.

Plus Power Solution in Bandar Bukit Puchong splits the 4.5 kA, 6 kA and 10 kA lines onto separate pages, which makes the capacity line easier to sort. The pages list selectable references (23 codes for 6 kA, 11 for 10 kA, 4 for 4.5 kA), so you can see whether a code is offered before messaging. It also runs on enquiry; its store profile has the contacts and hours.

Neither seller publishes prices, so expect to ask. A listed code shows what a seller advertises, not what’s in stock. For Schneider’s distributor network, see where to buy Schneider in Malaysia; the Easy9 overview compares the MCB with Easy9’s RCCBs and RCBOs and with Acti9.
